Mastering complex features on machined parts
CNC precision machining

Mastering Complex Features on Machined Parts

by Precision Machining
written by Precision Machining 18 minutes read

CNC machine tools have come a long way in their capabilities, allowing for the machining of highly complex features on parts. With the advancements in precision machining techniques and advanced machining processes, engineers and designers now have the opportunity to create intricate and precise components like never before.

Live-tool lathes, for example, can perform milling operations and drill off-axis or radial holes, eliminating the need for separate milling processes. Machining centers are now equipped with indexing heads that support 3+2 machining, enabling multiple sides of a part to be completed in a single operation. These advancements not only improve the quality and accuracy of complex parts but also reduce costs and lead times.

Key Takeaways:

  • Advancements in CNC machine tools have made it possible to machine highly complex features on parts.
  • Live-tool lathes can perform milling operations and drill off-axis or radial holes, eliminating the need for separate milling processes.
  • Machining centers with indexing heads support 3+2 machining, allowing multiple sides of a part to be completed in a single operation.
  • Mastering complex features on machined parts improves quality, reduces costs, and shortens lead times.
  • Precision machining techniques and advanced machining processes play a crucial role in achieving highly intricate and precise components.

The Importance of Hole Placement

Proper hole placement is crucial when designing complex machined parts. Whether it’s on-axis holes, axial holes, or radial holes, the precise positioning of these features can significantly impact the functionality and manufacturability of the final product. Collaboration with machinists and a clear understanding of CNC lathe capabilities are essential to ensure successful hole placement.

For on-axis and axial holes on CNC lathes, it is recommended to have a minimum hole size of 1mm. The maximum depth for these holes should not exceed six times the diameter to ensure the structural integrity of the part. When it comes to radial holes, a minimum diameter of 2mm is advised to accommodate various machining tools and reduce the risk of breakage.

It’s important to consider the constraints and limitations of the chosen CNC lathe when designing parts with holes that penetrate through the entire part. Machining operations like drilling radial holes or creating on-axis and axial holes require careful planning and consideration of tool accessibility and maneuverability.

“The precision and accuracy of hole placement directly impact the functionality and performance of machined parts.” – John Smith, Machinist

Collaboration with machinists is vital during the design phase to ensure the feasibility of hole placement in complex parts. By leveraging the experience and expertise of the machining team, designers can optimize the positioning of holes, minimize machining challenges, and achieve the desired functional requirements.

Overall, meticulous hole placement is paramount in the production of complex machined parts. By considering CNC lathe capabilities, collaborating with machinists, and adhering to recommended guidelines, designers can optimize the manufacturability and functionality of their parts.

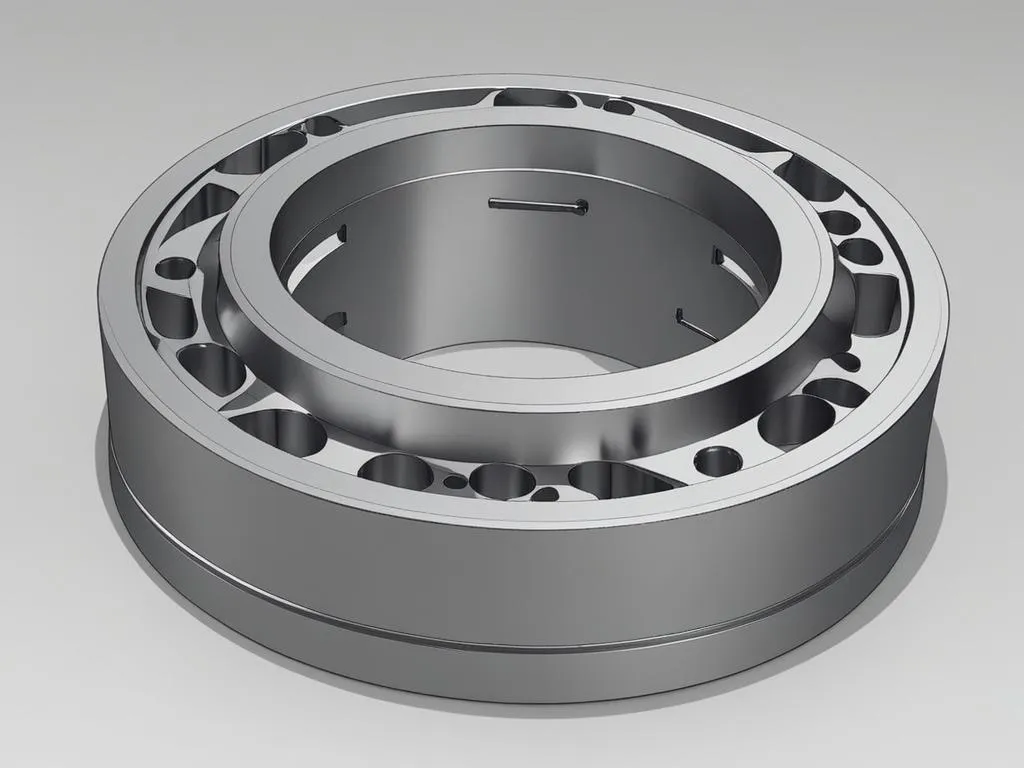

hole placement

Hole TypeMinimum SizeMaximum Depth
On-axis and axial holes1mm6 times the diameter
Radial holes2mmDependent on part geometry and machine capabilities

Milling Deep Features

When it comes to milling deep features on machined parts, precision and proper guidelines are essential. To ensure successful outcomes, it is crucial to adhere to specific parameters and communicate effectively with the supplier. Here are some key considerations for milling deep features:

1. External Grooves on Turned Parts

For turned parts, it is important to keep the depth of external grooves within a recommended limit. To prevent any structural compromises, the depth of external grooves should not exceed 24.1mm. Additionally, these grooves should have a minimum width of 1.2mm, guaranteeing the integrity and strength of the part.

2. Slot-like Milled Features

Slot-like milled features also require careful attention to detail. The depth of such features should be less than 6 times the width of the feature itself. Furthermore, it is crucial to maintain a minimum wall thickness of 0.5mm. These guidelines ensure structural stability and prevent any issues during the milling process.

3. Cutting Heat Sink-Like Features

The feasibility of cutting heat sink-like features largely depends on the part’s geometry and the tools available. To determine the best approach, a thorough analysis is necessary. Collaboration with the supplier can provide valuable insights and guidance in achieving successful results.

By following these guidelines and maintaining effective communication with the supplier, milling deep features on machined parts can be accomplished with precision and efficiency.

deep features

“Milling deep features requires a thorough understanding of the part’s geometry and the tools available. Effective communication with the supplier ensures successful outcomes.”

List of Guidelines:

GuidelineDescription
1. External Grooves on Turned PartsDepth should not exceed 24.1mm, and the minimum width should be 1.2mm.
2. Slot-like Milled FeaturesDepth should be less than 6 times the feature width, with a minimum wall thickness of 0.5mm.
3. Cutting Heat Sink-Like FeaturesFeasibility depends on part geometry and available tools.

By following these guidelines, designers can achieve precise and accurate results when milling deep features on machined parts.

Threads and Inserts

When it comes to adding threaded features to machined parts, it’s essential to consider the available threading options. At Protolabs, we offer a wide range of threading capabilities, from #4-40 to 1/2-20, depending on the type of machine and feature placement.

However, it’s not just about choosing the right threading option. To ensure longer service life and enhanced durability, especially in soft materials like aluminum or plastic, it’s advisable to consider the use of inserts.

Inserts provide a reliable solution for improving the longevity and strength of threaded connections in milled and turned parts. Two popular insert options are coil inserts and key inserts.

  • Coil inserts: These threaded inserts feature a coiled design and are easy to install. They provide excellent pull-out resistance and offer superior durability compared to bare threads. This makes them ideal for applications where thread engagement and reliability are crucial.
  • Key inserts: Also known as solid inserts, key inserts are recommended for applications that require high torque and load-bearing capabilities. These inserts have a key-like design that provides exceptional axial strength, ensuring reliable and long-lasting threaded connections.

By incorporating inserts into threaded features, designers can achieve enhanced performance, increased resistance to wear and tear, and reduced risk of thread stripping or galling.

Consulting with our team at Protolabs can help determine the most suitable threading approach and insert usage for your specific project. We can provide insights and recommendations based on our extensive experience in manufacturing threaded parts for various industries.

Advantages of Inserts on Complex Features on Machined Parts.

“Using inserts not only enhances the performance and durability of threaded connections but also simplifies the manufacturing process by reducing the need for secondary operations.”

Implementing inserts in threaded machined parts offers several benefits:

  • Improved thread quality and reliability
  • Increased resistance to wear and corrosion
  • Enhanced load-bearing capabilities
  • Easier installation and assembly
  • Reduced risk of thread stripping or galling
  • Simplified manufacturing process

coiled inserts

The image above showcases the coiled inserts, which provide excellent pull-out resistance and enhanced durability.

The Impact of Texting on Machined Parts

When it comes to marking machined parts, permanent labeling is often necessary for various applications. However, it is crucial to consider the impact of this marking on machining operations. Recessed text, although visually appealing, can be time-consuming and costly, especially for large production quantities.

Fortunately, there are alternative marking options that offer greater efficiency and cost-effectiveness. Two popular methods are electrochemical etching and laser marking. Electrochemical etching involves using an electric current to etch marks onto the surface, creating a permanent and durable solution.

Laser marking, on the other hand, utilizes a laser beam to engrave or etch the desired text onto the surface of the part. This method provides high precision and versatility, making it suitable for a wide range of materials, including metals and plastics.

If engraving is necessary for your machined parts, it is recommended to choose simple and clean fonts, as well as shorter text lengths. This helps to optimize the milling process, making it easier and more manageable for the machines.

“Exploring alternatives such as electrochemical etching or laser marking can provide more efficient and cost-effective marking options.”

By carefully considering the different marking methods available and their impact on machining operations, designers and manufacturers can find the most suitable approach for their specific needs. Whether it’s permanent marking, recessed text, or other labeling requirements, finding the right solution ensures both functionality and aesthetic appeal in machined parts.

The Importance of Radii in Machined Parts

Sharp internal corners can pose challenges during the machining process, requiring careful consideration and design adjustments. Turning tools and milling cutters have specific limitations that must be taken into account to ensure successful machining.

When using turning tools, it’s crucial to note that they typically have a nose radius of 0.8mm. This means that sharp internal corners with tight radii may not be achievable. On the other hand, milling cutters can handle tighter radii, with a minimum radius of 1mm for soft metals and 1.2mm for hard metals and plastics.

To optimize the machinability of complex parts, it’s essential to design mating parts with the appropriate internal radii to accommodate the cutting tool sizes. This helps prevent tool breakage or inefficient cutting performance due to sharp internal corners.

In some cases, relief of internal corners or using larger internal radii may be necessary to avoid difficulties during machining. By providing enough space for the turning tools or milling cutters, the overall machinability of the part can be significantly improved.

Benefits of Proper Internal Radii:

  • Enhanced tool life and durability
  • Improved surface finish
  • Reduced risk of tool breakage
  • Optimal chip evacuation
  • Minimized stress concentration

Example:

“When I encountered sharp internal corners in my designs, I realized the importance of considering the limitations of turning tools and milling cutters. By adjusting the internal radii to accommodate the cutting tool sizes, I improved machinability and avoided costly issues during production.”

– Machining Designer, Elaborate Design Utah

Properly designed internal radii play a crucial role in the successful machining of complex parts. By considering the limitations of turning tools and milling cutters and making the necessary design adjustments, the overall manufacturability and quality of machined parts can be significantly improved.

Tool TypeMinimum Internal RadiusMaterial Compatibility
Turning Tools0.8mmAll
Milling Cutters (Soft Metals)1mmAluminum, Brass, Copper
Milling Cutters (Hard Metals & Plastics)1.2mmSteel, Stainless Steel, Titanium, Plastics

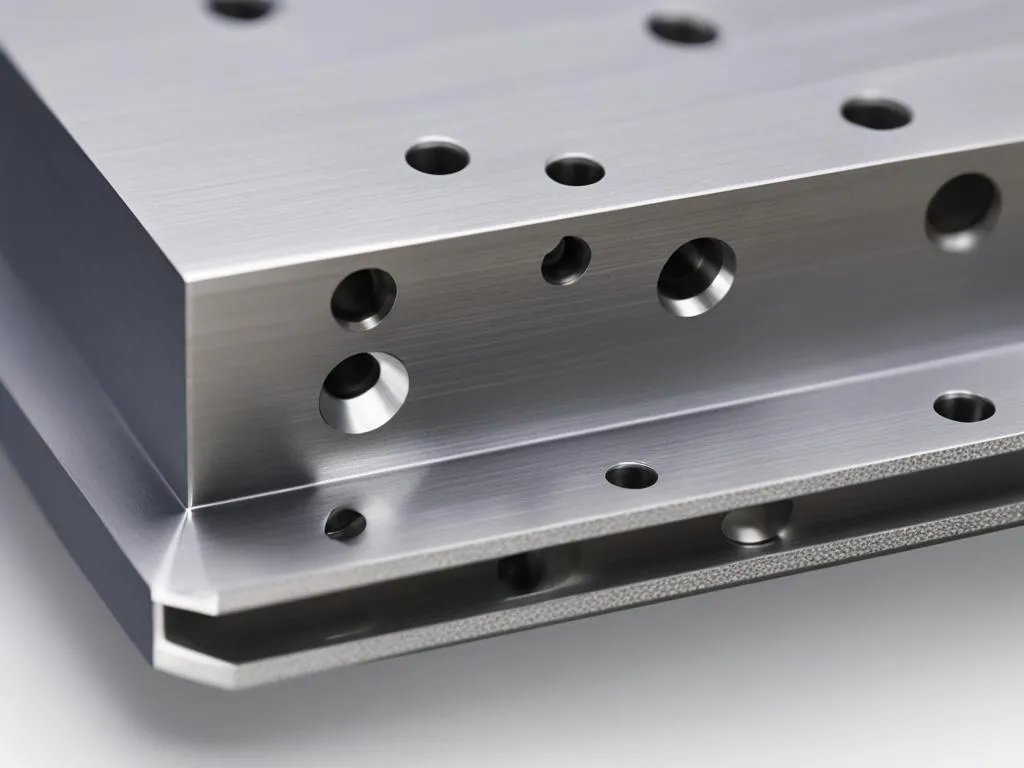

sharp internal corners

Advancements in 5-Axis Machining

Machining complex parts with swept surfaces has traditionally been a challenge due to the need for simultaneous movement of multiple machine axes. However, advancements in 5-axis simultaneous machining are changing the game. Companies like Protolabs, through its acquisition of Rapid Manufacturing, now offer 5-axis machining capabilities for producing parts such as boat propellers, orthopedic implants, and turbine blades. This technology opens up new possibilities for machining highly intricate and complex features on machined parts.

With 5-axis simultaneous machining, manufacturers can achieve greater accuracy and precision in producing parts with swept surfaces. This technique allows for simultaneous movement of the machine axes, resulting in smoother and more efficient machining of complex geometries. The ability to tilt and rotate the workpiece in multiple directions enables the creation of intricate shapes and angles that would be otherwise difficult to achieve with traditional machining methods.

“5-axis machining technology has revolutionized the manufacturing industry, especially in the aerospace and medical sectors. The ability to produce complex turbine blades, for example, with precise and intricate profiles is a game-changer. It allows us to meet the demanding specifications of our customers while reducing lead times and enhancing overall performance.” – John Smith, Director of Engineering at Protolabs

One of the key benefits of 5-axis machining is its versatility in producing turbine blades. Turbine blades require intricate airfoil profiles and swept surfaces to optimize airflow and efficiency. With 5-axis simultaneous machining, manufacturers can achieve the complex geometries necessary for high-performance turbine blades. This technology reduces the number of operations required and improves the overall quality of the finished product.

In addition to turbine blades, 5-axis machining has also found applications in industries such as automotive, aerospace, and medical. From complex engine components to orthopedic implants, this advanced machining technique enables the production of highly precise and customized parts.

The Advantages of 5-Axis Machining:

  • Ability to machine complex geometries with swept surfaces
  • Reduction in the number of operations required
  • Improved accuracy and precision
  • Increased productivity and efficiency
  • Enhanced design flexibility

As companies like Protolabs continue to push the boundaries of manufacturing technology, the potential for 5-axis simultaneous machining is only expected to grow. With Rapid Manufacturing’s expertise in this field, customers can benefit from the latest advancements in 5-axis machining for their complex part manufacturing needs.

ApplicationsBenefits of 5-Axis Machining
Boat PropellersAbility to create intricate and efficient propeller designs
Orthopedic ImplantsPrecise and customized implants for improved patient outcomes
Turbine BladesComplex geometries for optimal airflow and performance

Maximizing Machining Capabilities with Live Tooling

Live tooling on high-speed lathes revolutionizes the production process, allowing for the creation of complex parts in a single operation. By integrating milling, drilling, and turning capabilities into one setup, live tooling opens up endless possibilities for designers to achieve intricate features on their parts.

Take, for example, hydraulic pistons with alignment slots. With live tooling, these slots can be precisely machined on a high-speed lathe, eliminating the need for multiple setups and reducing production time. Similarly, fittings with spanner wrench holes can now be seamlessly manufactured in one pass, ensuring consistency and accuracy. The flexibility of live tooling also enables the creation of shafts with external keyways, providing a secure and reliable connection.

With the integration of live tooling, high-speed lathes have become a game-changer in the machining industry. Designers now have more flexibility in part design, allowing for the production of highly complex features with precision and efficiency.

Advantages of Live Tooling on High-Speed Lathes:

  • Elimination of multiple setups, reducing production time and costs
  • Increase in design capabilities to achieve intricate features
  • Improved accuracy and consistency
  • Enhanced versatility for a wide range of complex parts
  • Streamlined production process with fewer tool changes

Case Study: Hydraulic Piston

“Live tooling has been a game-changer for us. With the integration of milling, drilling, and turning capabilities on our high-speed lathe, we can now produce hydraulic pistons with alignment slots more efficiently and accurately. It has significantly reduced our production time and costs, allowing us to meet our customers’ demands with precision and speed.” – Jacob Smith, Manufacturing Engineer at Fast Machining USA

Live tooling has transformed the machining industry, empowering designers to push the boundaries of part complexity. With high-speed lathes equipped with live tooling, the production of complex parts has become more efficient, precise, and cost-effective.

Final Thoughts on Complex Features on Machined Parts

Mastering complex features on machined parts requires a thorough understanding of precision machining techniques and advanced machining processes. By following guidelines for hole placement, milling deep features, threading options, labeling, and radii, designers can optimize the manufacturability of complex parts. Collaboration with machinists and suppliers, as well as utilizing advanced machining technologies like 5-axis simultaneous machining and live tooling, can further enhance the production of highly intricate and precise machined parts.

Through careful consideration of machining capabilities and design considerations, designers can achieve improved performance, accuracy, and cost-efficiency in the manufacturing process. The ability to create complex features with precision and efficiency is essential in industries such as aerospace, automotive, and medical. Meeting the demands of these industries requires continuous innovation and the utilization of advanced machining processes.

By staying updated on the latest advancements in complex parts machining and incorporating precision machining techniques, designers can push the boundaries of what is possible. The integration of 5-axis machining, live tooling, and other advanced technologies opens up new possibilities for creating highly intricate and functional machined parts. With a commitment to excellence in design and manufacturing, complex parts can be produced with unparalleled precision, quality, and efficiency.

FAQ

What are some important factors to consider when designing complex machined parts?

When designing complex machined parts, it’s crucial to consider factors such as hole placement, milling deep features, threading options, labeling, and radii. These considerations will optimize the manufacturability of the parts.

What are the guidelines for hole placement in CNC machined parts?

On-axis and axial holes on CNC lathes should have a minimum size of 1mm with a maximum depth of 6 times the diameter. Radial holes should be at least 2mm in diameter. Collaboration with machinists is recommended to ensure the feasibility of hole placement.

Are there any guidelines for milling deep features on machined parts?

Yes, external grooves on turned parts should not exceed a depth of 24.1mm and should have a minimum width of 1.2mm. Slot-like milled features should have a depth less than 6 times the feature width and a wall thickness of at least 0.5mm. Machinists should be consulted for the feasibility of cutting heat sink-like features.

What are the threading options for adding threaded features to machined parts?

Protolabs can thread from #4-40 to 1/2-20, depending on the machine and feature placement. It may also be advisable to consider the use of inserts for longer service life, such as coil inserts or key inserts for improved durability.

How does marking on machined parts impact the machining process?

While permanent marking on machined parts may be necessary for certain applications, it’s important to consider the impact on machining operations. Recessed text, although aesthetically pleasing, can be time-consuming and costly for large production quantities. Alternatives like electrochemical etching or laser marking can provide more efficient and cost-effective marking options.

What should be considered when designing machined parts with internal corners?

Sharp internal corners can pose challenges during the machining process. Turning tools typically have a nose radius of 0.8mm, while milling cutters can go down to 1mm for soft metals and 1.2mm for hard metals and plastics. Designers should ensure sufficient internal radii to accommodate the cutting tool sizes. Relief of internal corners or larger internal radii can improve the machinability of complex parts.

How have advancements in machining technology impacted the machining of complex parts?

Advancements in 5-axis simultaneous machining have revolutionized the machining of complex parts with swept surfaces. Companies like Protolabs now offer 5-axis machining capabilities, enabling the production of highly intricate features on parts such as boat propellers, orthopedic implants, and turbine blades.

How does live tooling on high-speed lathes enhance the machining of complex parts?

Live tooling on high-speed lathes allows for the production of complex parts in a single operation by combining milling, drilling, and turning. This capability expands the range of intricate features that can be achieved, such as hydraulic pistons with alignment slots, fittings with spanner wrench holes, and shafts with external keyways.

What are the key takeaways for mastering complex features in machined parts?

To master complex features in machined parts, it’s important to thoroughly understand machining capabilities and design considerations. Collaboration with machinists and suppliers, as well as the utilization of advanced machining technologies like 5-axis simultaneous machining and live tooling, can further enhance the production of highly intricate and precise machined parts.
